Joist Hanger - HDSM
Joist or wall hanger with double deflection LDS rubber element and can be fitted with a ceiling channel clamp or eye bolt.
HDSM Specification:

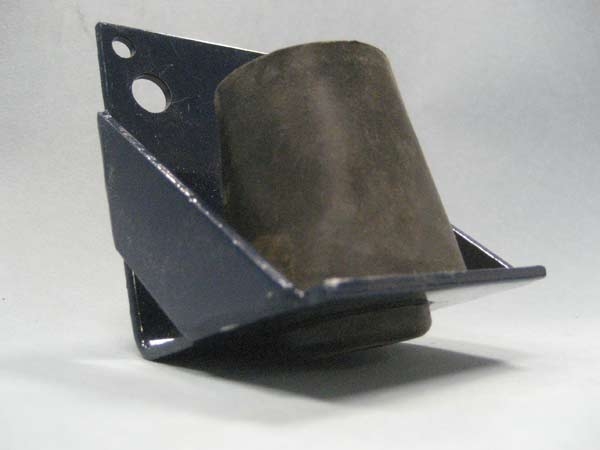

HDSM hangers consist of a side attachment steel angle gusseted on each side to prevent bending. The gussets protect an AASHTO bridge bearing quality LDS rubber element molded with an integral lock in grommet at the bottom to prevent steel rod to housing acoustical short circuiting. Dynamic Stiffness does not exceed 1.4 nor the corrected frequency 8 Hz. Housing configurations offered for simple attachment to 1.5" x .5" channels or 12 gauge wire.
Related Products
Joist Hanger - HDSM

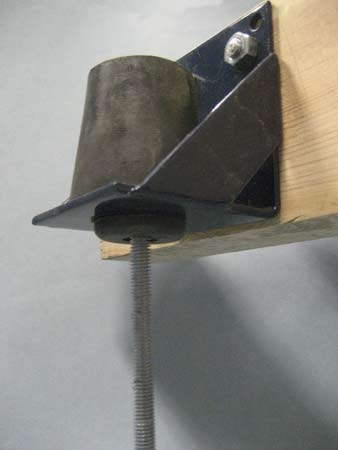

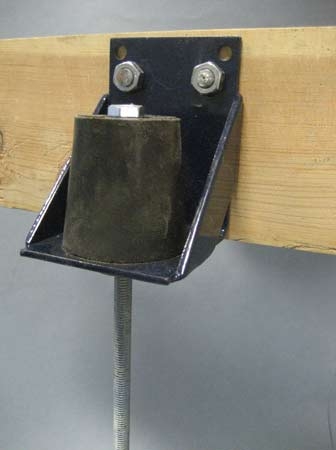

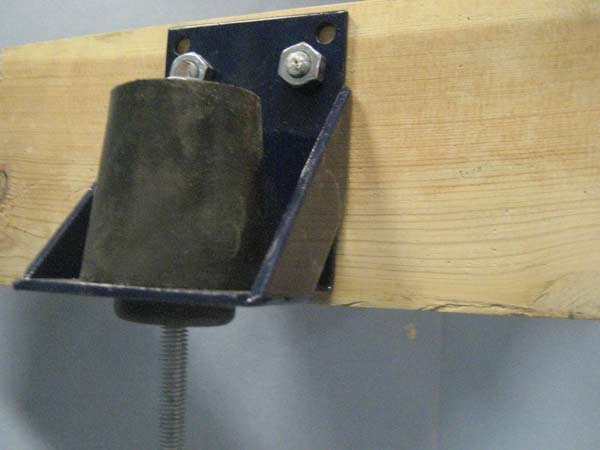

The HDSM joist hanger has been created to bolt directly to the side of a joist. A thread can be run down to attach to a suspended ceiling frame, an eyebolt or other attachments.
HDSM Datasheet
View Datasheet |
HDLP-A Low Profile Ceiling Hanger
The HDLP-A Hanger (PREVIOUSLY CALLED CRCH) has been designed as a low profile ceiling hanger and is used where floor to ceiling heights are critical. It uses the same rubber element as the HD-A and HDQF-A Hanger.
HDLP Low Profile Hanger
View Datasheet |
HDQF - Rubber Ceiling Hangers
Quick fit ceiling hangers are made from high quality low dynamic stiffness (LDS) natural rubber. This hanger has been designed to aid the contractor with a quick installation of suspended acoustic ceilings which use a metal grid system.
HDQF-A - Acoustic Hanger PDF
View Datasheet |
HDQF DWG
View CAD File |
WHR Acoustic Ceiling Hangers

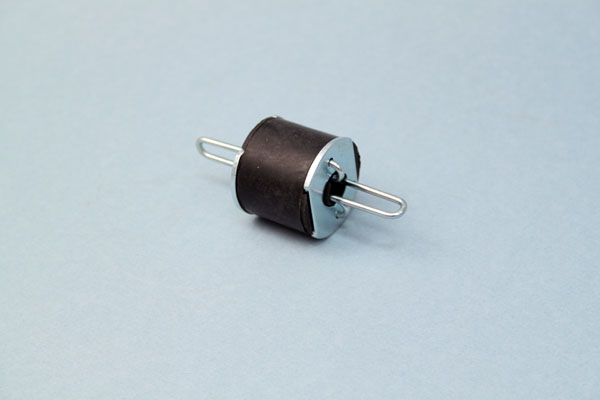

The WHR is a low cost acoustic ceiling hanger which still provides 5mm of deflection and is constructed from high quality low dynamic stiffness natural rubber. Click below to learn more
