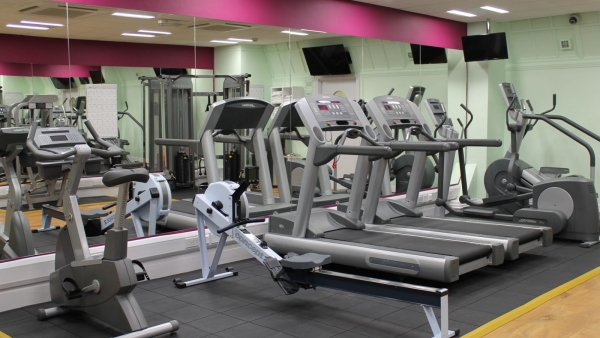

Gym with Free Weights & Machines

Gymnasia

A gym by its very nature is a place where people participate in noisy activities – running, jumping, shouting, ball sports and weight lifting etc are all part of typical gym usage; any construction must withstand this treatment whilst maintaining acoustic separation to prevent noise and structural vibration transmission.

Of primary consideration are nearby rooms- above, below or adjacent to the gymnasium. The comfort of the people in these rooms, especially sensitive areas such as IT centres, offices, auditoria, residential or libraries mean that the gym will require acoustic and vibration isolation. In these situations it is imperative to consider isolating the flooring from the main structure and if necessary we may also recommend additional isolation for the walls and ceilings and sometimes it may be necessary to isolate separate parts of the same room, for instance a running machine or free weights area.

Floating Floor Types

There are several types of floating floor systems available to provide acoustic separation. Depending upon your needs you may choose one over another. A popular choice for a gymnasium is a sprung wooden floating floor, which is very effective for aerobic and dance studios. For more demanding applications a spring or LDS (Low Dynamic Stiffness) rubber jack up concrete floating floor may be deemed more suitable. These floors are stronger more effective at absorbing dynamic loads and can be covered with different finishes to achieve the owner’s requirement.



Isolated Walls

If necessary, we can also isolate the walls of a gym. This can be done in one of two ways; firstly they can be built directly onto the floating floor (known as the ‘Box in a Box’ technique). Or, separately use SWW wall isolating plates at the base and AB-716 head restraint at the top. Acoustic sway braces can be attached in-between, tying resiliently the internal acoustic wall to the external building structure. The use of these products also creates an air gap which increases the acoustic performance.



Suspended Ceilings

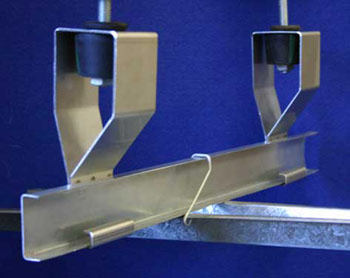

A suspended ceiling may also be required; forming the ‘lid’ of the acoustically isolated box. There are several types of acoustic hangers available and for standard suspended ceilings we recommend the use of our HDQF hangers, which are available in either spring or L.D.S rubber. The HDQF hanger has been designed to easily clip onto the main support channel section of the ceiling grid system making it quicker, easier and a more reliable installation saving time and money for the contractor.



Conclusion

Mason UK can design a bespoke system to meet the requirements of your project. We can also design project specific products for specific solutions too! Typical products are listed below, and past gymnasium projects are listed down the right hand side in the grey bar.


The best way to discover the solution for isolating your gymnasium, with your particular needs, is to contact our acoustic design engineers. Contact details are on the left in the blue bar or you send an email from our ‘Contact’ page.



      Typical Products Used

Hangers & Ceilings

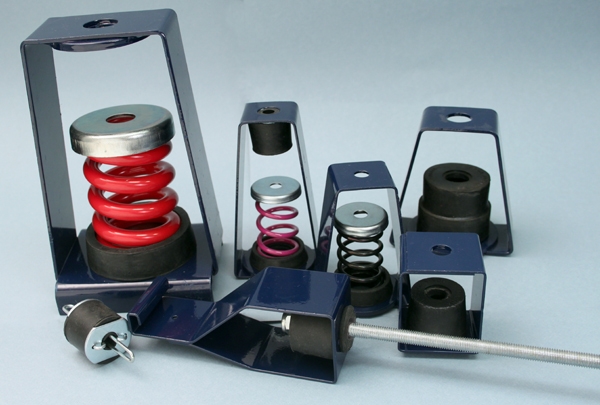

Acoustic suspended ceilings are an excellent way of preventing airborne noise from below passing into the ceiling structure, or preventing noise/vibration from the floor above entering the room below. Mason U.K. has a very large range of acoustic hangers available, click below to view.

Isolated Walls

The walls of a space sensitive to noise or vibration transmission need to be isolated from the main building structure. The walls can be built on a floating floor or specially designed wall support plates. Click below to learn more.

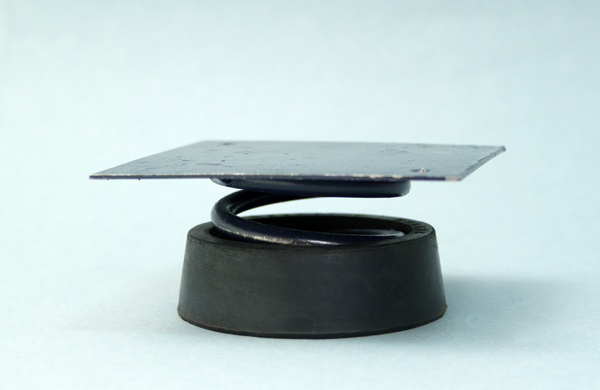

MFS Lightweight Floor Spring

Wooden floating floors using the Mason MFS spring mount are great for acoustic sports flooring. Their lightweight design means they are often suitable where concrete flooring is not. Click below to find out more.

MFS datasheet
Mason UK Ltd -  MFS datasheet View Datasheet

Jack-Up LDS Rubber Floating Floors

The Mason FSN Jack-Up system eliminates the need for the labour intensive installation of boards & the lifting process ensures the airgap without the possibility of bridging. The Jack-Up system is highly flexible and assures excellent performance.

Small FSN Floating Floor Mount
Mason UK Ltd -  Small FSN Floating Floor Mount View Datasheet

Large FSN Floating Floor Mount
Mason UK Ltd -  Large FSN Floating Floor Mount View Datasheet

Floating floor brochure
Mason UK Ltd -  Floating floor brochure View Datasheet

Jack-Up Spring Floating Floors

Mason Industries jack-up spring acoustic floating floors are used for low frequency isolation or where impact isolation is required, such as bowling alleys, gymnasia & health clubs. Click below to find out more.

Spring Mount Floating Floors PDF
Mason UK Ltd -  Spring Mount Floating Floors PDF View Datasheet

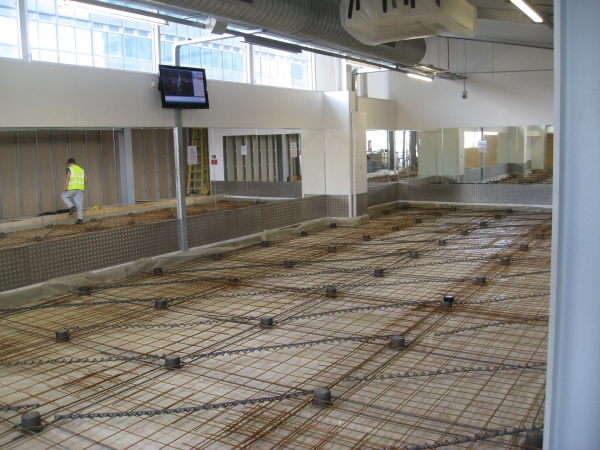

Concrete Floating Floors

This is an introduction to Mason UK concrete acoustic floating floor systems. There are 3 main systems; LDS rubber FSN jack-up, FS spring jack-up & EAFM form work. These acoustic floating floor systems are used to acoustically isolate a room from its surroundings. Please click below to learn more

Spring Floating Floors PDF
Mason UK Ltd -  Spring Floating Floors PDF View Datasheet

Rubber Floating Floors PDF
Mason UK Ltd -  Rubber Floating Floors PDF View Datasheet
