D.J. in a night club

Night Clubs & Pubs

Nightclubs and pubs are frequently the source of high noise levels requiring carefully considered acoustic treatment. Mason U.K's products can prevent the transmission of noise and vibration.

Pubs and nightclubs are, by their very nature, frequently loud places; jovial people, sound systems, bands, DJ's, or a gig and you may suddenly have a very noisy environment on your hands. You may be required by law (or irritated neighbours) to monitor and control the acoustic and vibration levels produced. Mason UK can help; we have extensive experience in isolating these types on environments.

Acoustic Isolation Methods Available

Mason UK can design and supply products to prevent the transmission of noise/vibration through walls, ceilings and floors. We can also design local isolation, e.g. for dance floors and speaker mounts.


A nightclub or pub that products a high noise level may require a ‘Box in a Box’ construction, which will totally isolate a room from the surrounding building structure. Whatever your problem, Mason UK Ltd will produce a bespoke design to solve it. Some typical solutions are listed below.


Ceiling Isolation

A pub may have lower noise levels than a nightclub, but if there are residential living areas above it, or neighbours nearby, it may still require an acoustically isolated mass barrier ceiling.


We would usually recommend suspending an acoustically isolated ceiling using our HDQF hangers. More information on these hangers can be found at the bottom of this page. Other hanger types are available depending on the ceiling type and the acoustic requirements. Click the ‘products’ drop down menu at the top of the screen and scroll down to the relevant option.

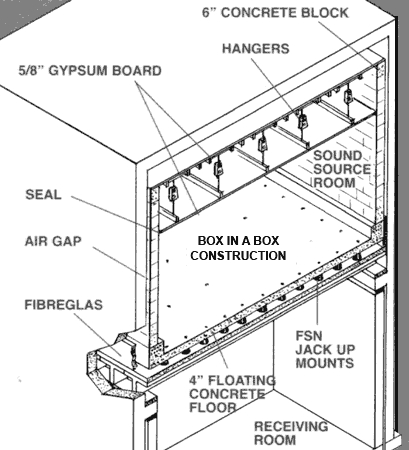

Box in a Box Construction

For venues with louder events, we recommend the ‘Box in a Box’ method to achieve total acoustic isolation. This is perfect for nightclubs or very noisy pubs that may be in a residential area.


The acoustic floating flooring is the first element to be constructed. This is lifted to form an air gap and isolated from the existing structure through either LDS rubber (previously neoprene) or sometimes springs. The walls of the structure are built upon this flooring and are only attached to the external walls through our special acoustic wall braces. The ceiling is supported on the walls or suspended from acoustic hangers. For more information on these products recommend, please scroll down to the bottom of the page. Other products can be viewed via the ‘Products’ drop down menu at the top of the screen.


Conclusion

We completed numerous projects for clients with similar needs to those mentioned above. You can view some of these projects in the grey bar to the right. We recognise that each project is bespoke and therefore will create a design best suited to your needs.


If you are interested in having a nightclub or pub acoustically isolated, or just have a question, then please contact our friendly acoustic engineers. They will be happy to discuss your project requirements and any queries you may have. Contact details are to the left, in the blue bar or you can email us a quick message via our Contact page.



      Typical Products Used

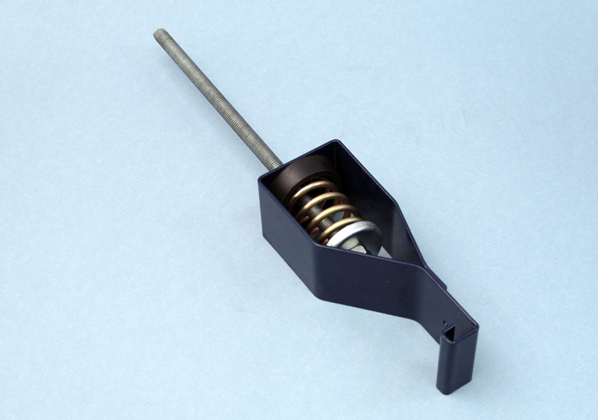

HDQF - Spring Hanger

HDQF-X quick fit spring ceiling hanger. Our HDQF-X hanger has been designed to aid the quick and easy installation of suspended acoustic ceilings.

HDQF Spring PDF
Mason UK Ltd -  HDQF Spring PDF View Datasheet

HDQF Spring Installation Instructions
Mason UK Ltd -  HDQF Spring Installation Instructions View Datasheet

HDQF DWG
Mason UK Ltd - HDQF DWG View CAD File

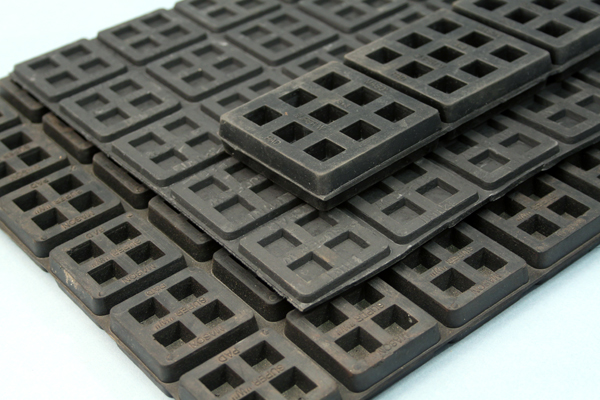

Rubber Mounts & Pads

Anti-vibration rubber mounts & pads, in neoprene or L.D.S rubber, are available to suit a wide range of applications. Mason U.K. can help select the most appropriate solution for your application. Click below to learn more.

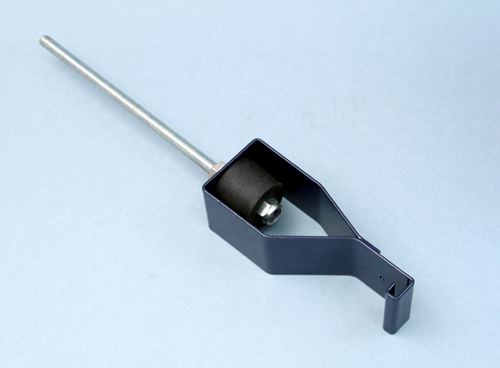

HDQF - Rubber Ceiling Hangers

Quick fit ceiling hangers are made from high quality low dynamic stiffness (LDS) natural rubber. This hanger has been designed to aid the contractor with a quick installation of suspended acoustic ceilings which use a metal grid system.

HDQF-A - Acoustic Hanger PDF
Mason UK Ltd -  HDQF-A - Acoustic Hanger PDF View Datasheet

HDQF DWG
Mason UK Ltd - HDQF DWG View CAD File

AFA - Acoustical Furring Attachment

The AFA is an acoustical furring attachment for use with metal or wood stud walling. The AFA clamps the top hat section of the metal framing system to which boards are then attached

AFA Data Sheet
Mason UK Ltd -  AFA Data Sheet View Datasheet

DNSB-A Sway Brace / Wall Tie

DNSB-A is a low frequency wall tie. It has a bolt end for stud walls or hooked end for masonry walls. Click below to learn more.

DNSB Sway Brace PDF
Mason UK Ltd -  DNSB Sway Brace PDF View Datasheet

Isolated Walls

The walls of a space sensitive to noise or vibration transmission need to be isolated from the main building structure. The walls can be built on a floating floor or specially designed wall support plates. Click below to learn more.

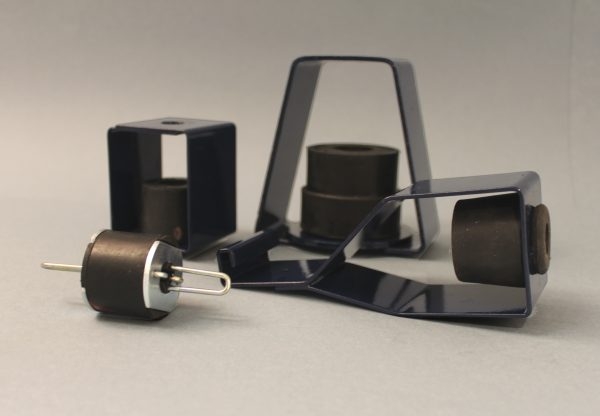

L.D.S Rubber Hangers

Our acoustic, LDS rubber (prev neoprene) hangers may be used for suspending ceilings or mechanical plant. Used where the disturbing vibration frequency is high. Click below to view this range of products

Jack-Up LDS Rubber Floating Floors

The Mason FSN Jack-Up system eliminates the need for the labour intensive installation of boards & the lifting process ensures the airgap without the possibility of bridging. The Jack-Up system is highly flexible and assures excellent performance.

Small FSN Floating Floor Mount
Mason UK Ltd -  Small FSN Floating Floor Mount View Datasheet

Large FSN Floating Floor Mount
Mason UK Ltd -  Large FSN Floating Floor Mount View Datasheet

Floating floor brochure
Mason UK Ltd -  Floating floor brochure View Datasheet

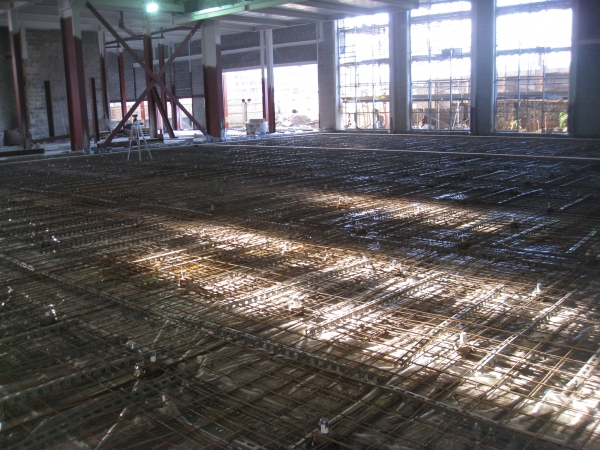

Concrete Floating Floors

This is an introduction to Mason UK concrete acoustic floating floor systems. There are 3 main systems; LDS rubber FSN jack-up, FS spring jack-up & EAFM form work. These acoustic floating floor systems are used to acoustically isolate a room from its surroundings. Please click below to learn more

Spring Floating Floors PDF
Mason UK Ltd -  Spring Floating Floors PDF View Datasheet

Rubber Floating Floors PDF
Mason UK Ltd -  Rubber Floating Floors PDF View Datasheet
